Alpin – Intel AI Server-1

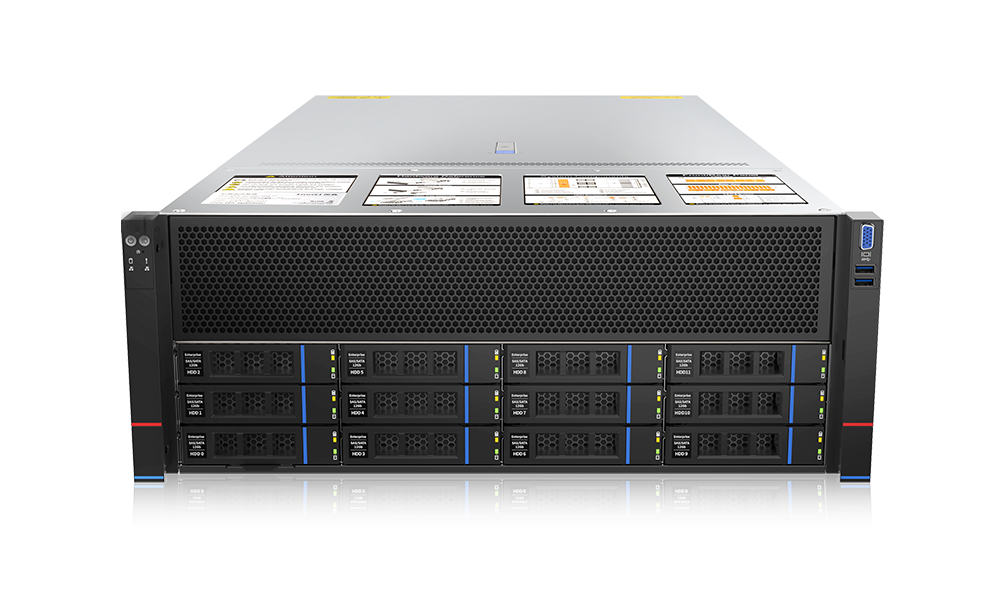

Alpin Intel AI Server
Integrated Training and Inference
CPU-GPU direct connection supports up to 8 double-width 600W GPUs, meeting the needs of various AI business scenarios. Suitable for applications in artificial intelligence, scientific computing, cloud computing, virtualization, big data analysis, and digital twins.
New Architecture, Extreme Performance
Supports 1 or 2 fourth or fifth-generation Intel® Xeon® Scalable
processors; with the latest DDR5 and PCIe 5.0 technologies, accelerating
data transfer rates; direct GPU-CPU connection, delivering extreme
multi-GPU computing power.
processors; with the latest DDR5 and PCIe 5.0 technologies, accelerating
data transfer rates; direct GPU-CPU connection, delivering extreme
multi-GPU computing power.
Flexible Topology, Key Applications

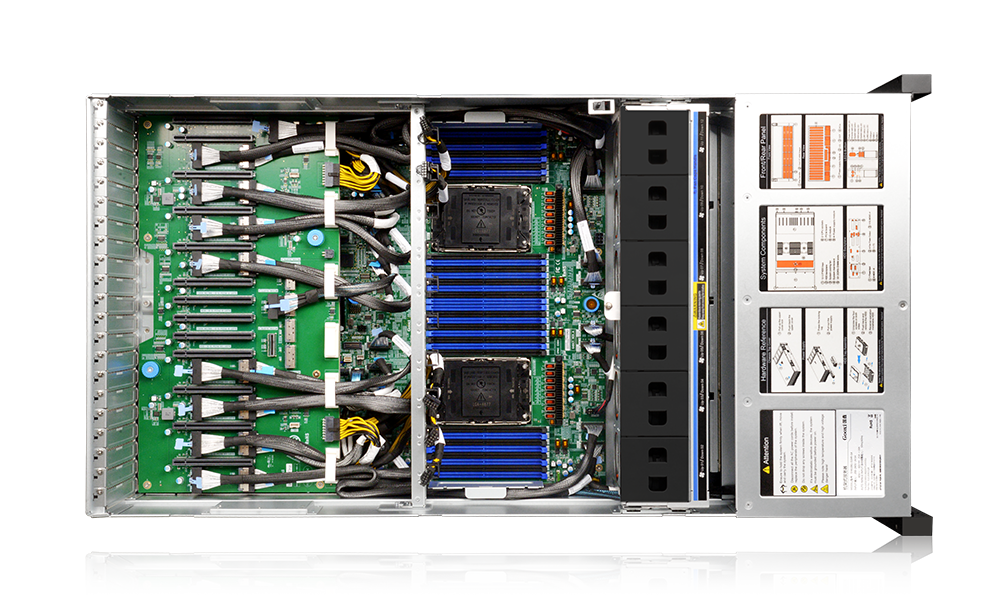

Supports direct CPU-GPU connection, accommodating up to 8 dual-width
600W GPUs for high-speed, stable operation; supports different CPU-GPU
interconnect topologies such as common and performance modes, suitable
for more application scenarios.
600W GPUs for high-speed, stable operation; supports different CPU-GPU
interconnect topologies such as common and performance modes, suitable
for more application scenarios.
Rich Ecosystem, Stable and Reliable
Compatible with both international and domestic AI accelerator cards; redundant design for key system components, modular design for functional parts to enhance product reliability and maintainability; supports intelligent remote management and fault diagnosis, ensuring 24/7 high-efficiency stable operation.
| Product Specifications | |
|---|---|
|
System Model |
GID12R-B12-G5
|
|
Processor |
Supports 1 or 2 fourth/fifth-generation Intel® Xeon® Scalable processors, with a maximum TDP of 350W. |
|
Chipset |
Intel® C741 series server-specific chipset. |
|
GPU Card |
Up to 8 double-width 600W GPUs
|
|
Memory |
32 DDR5 memory slots, supporting DDR5 4400/4800/5600MHz memory. |
|
Storage Controller |
2 Slimline 4x interfaces (SATA), 2 M.2 slots (2280/22110 size, SATA/PCIe 3.0 x1) |
|
Storage |
12 hot-swappable 3.5"/2.5" SAS/SATA/NVMe drives |
|
I/O Ports |
Front: 2 USB 3.0, 1 VGA
Rear: 1 serial port, 2 USB 3.0 ports, 1 VGA, 1 RJ45 management port (optional addition of 2 x 10G RJ45 service network ports)
|
|
PCIe Expansion |
Up to 13 PCIe expansion slots (OCP 3.0 card can be optionally configured as PCIe 5.0 x8 or x16, which is mutually exclusive with one of the PCIe5.0 standard single-width slots) |
|
Power Supply |
3+1 or 2+2 redundancy (2000W/2200W/2600W/3200W) |
|
Fan |
Standard 12 x 6056 hot-swappable N+1 redundant fans |
|
Management |
1 dedicated RJ45 management network port |
|
Security |
Supports TPM 2.0 module, chassis intrusion alarm, and BMC/BIOS redundancy |
|
Operating System |
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu, VMware ESXi, etc. |
|
Server Size |
176.5mm (H) x 444mm (W) x 850mm (D) |
